Helical SMSR Gear Box for Steel Industry
Product Details:
X
Product Description

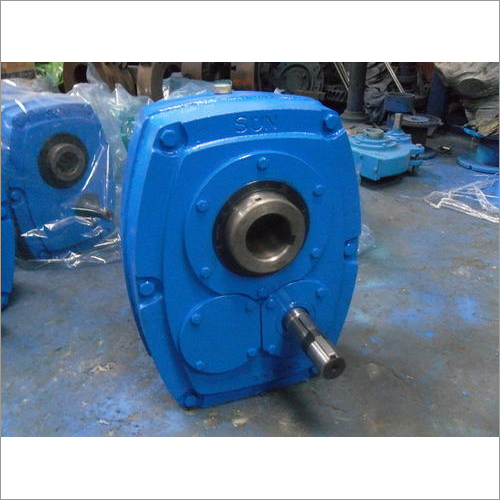

Helical SMSR Gear Box for Steel Industry
We are leading manufacturer, supplier and trader of Helical SMSR Gear Box for Steel Industry.
Features:
- Compact for higher ratio
- Specially designed heavy load capacity for conveyor belt
- Mounting is easy and adjustable
Technical Specification:
| S.no | Model | Ratio | Conveyor Drum Shaft Size | Drum Shaft Key Way Size | Pulley Shaft | Key Way | Jack Screw (min, max) |
| 1 | A | 05:01:00 | 73.2(3") , 63.5(2.5") | 15.90 x 7.90 | 38 | 10 x 5 | 400, 500 |
| 2 | B | 05.05:01 | 63.5(2.5") , 50.80(2") | 15.90 x 7.90 | 38 | 10 x 5 | 400, 500 |
| 3 | C | 05.05:01 | 63.5(2.5") , 50.80(2") | 12.70 x 6.30 , 15.90 x 7.90 | 28 | 8 x 4 | 360, 480 |
| 4 | D | 06.05:01 | 50.80(2") | 12.70 x 6.30 | 28 | 8 x 4 | 360, 480 |
| 5 | E | 07:01:00 | 50.80(2") , 38.10(1.5") | 12.70 x 6.30 , 9.50 x 4.70 | 28 | 8 x 4 | 360, 480 |
